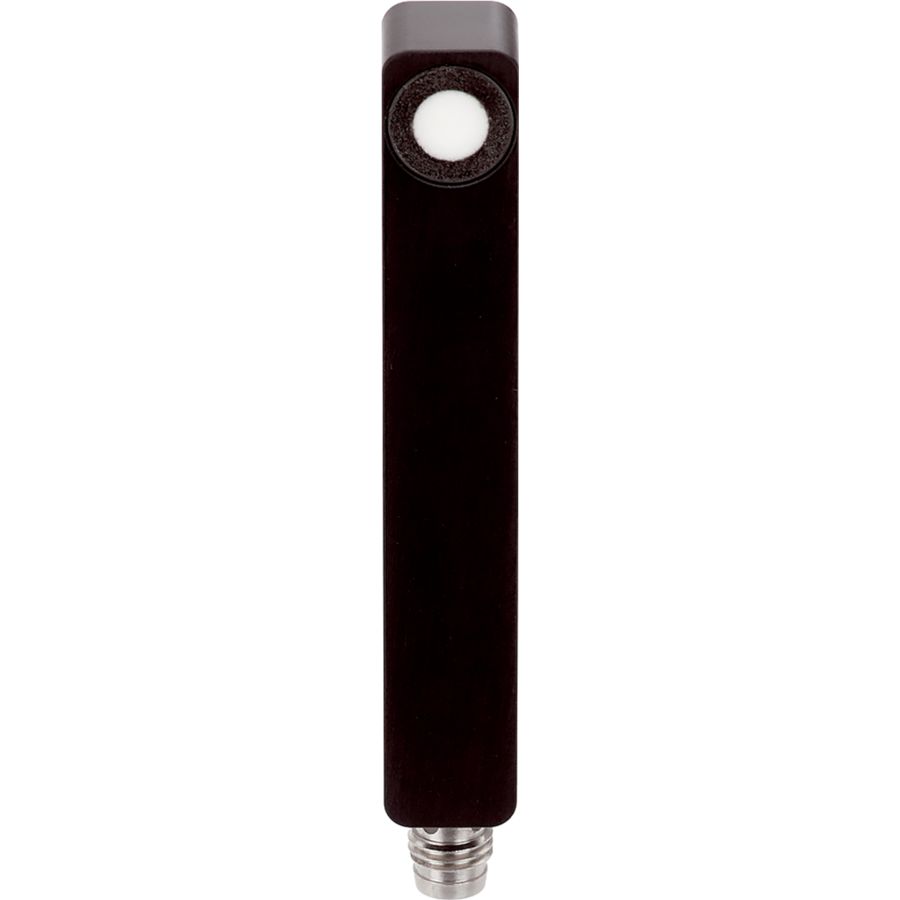

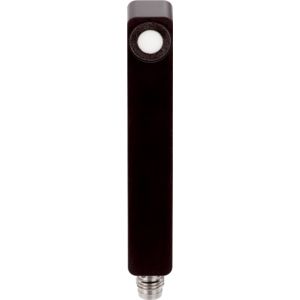

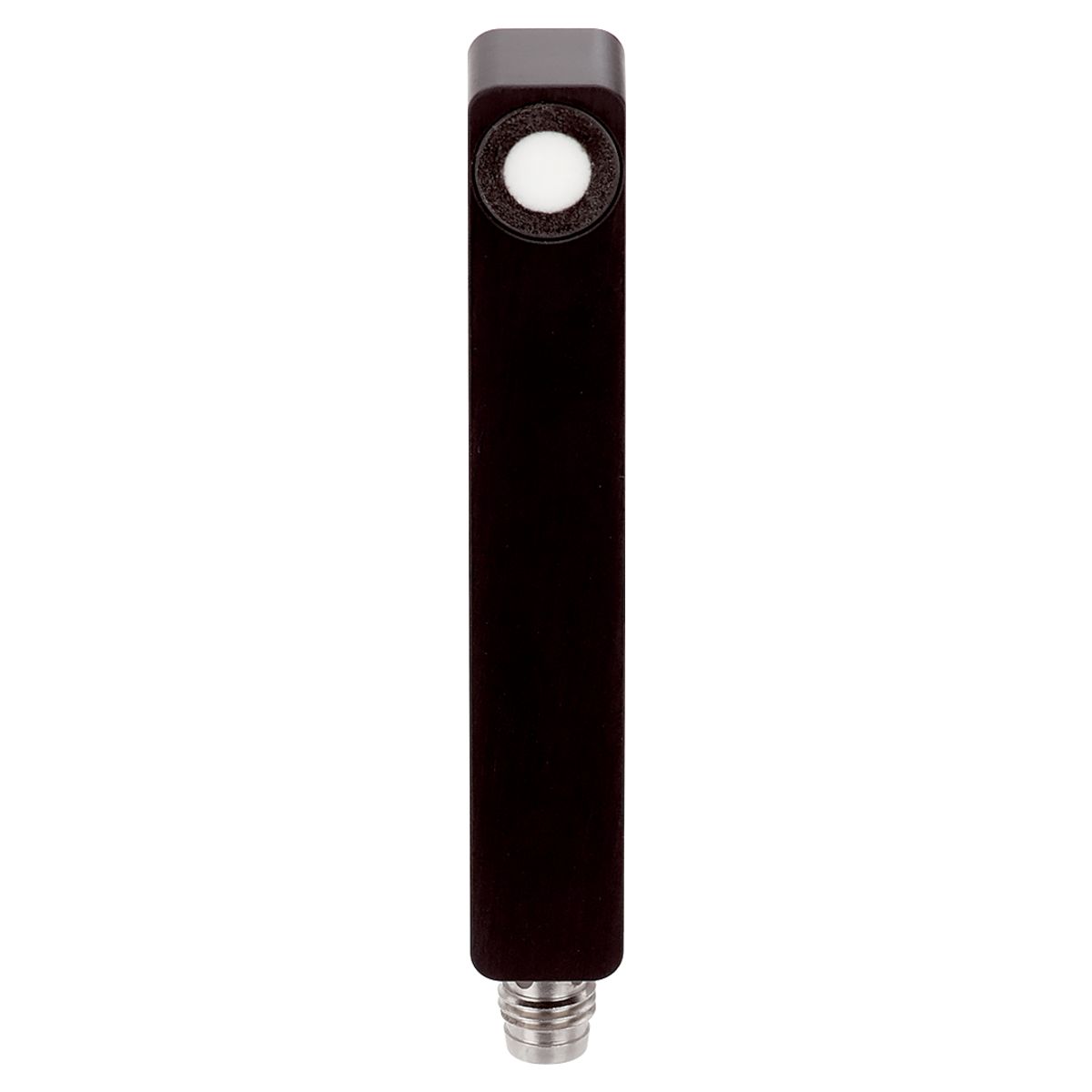

Ultrasonic Sensor - US Q12 M 400 R G3-T4
Part Number: US Q12 M 400 R G3-T4
Article Number: 210965
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Ultrasonic sensor, Ultrasonic barrier |
|---|---|
| Nominal switching distance (Sn) | 400 mm |
| Assembly distance (sensor to sensor) | 250 mm |
| Service voltage | 18 … 30 V DC |
| Switching output | Push-pull, 150 mA, NO/NC |
| Interface | IO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile) |
| Voltage drop (max.) | 2 V |
| Housing material | Aluminum (Anodized) |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |

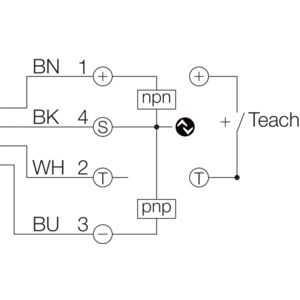

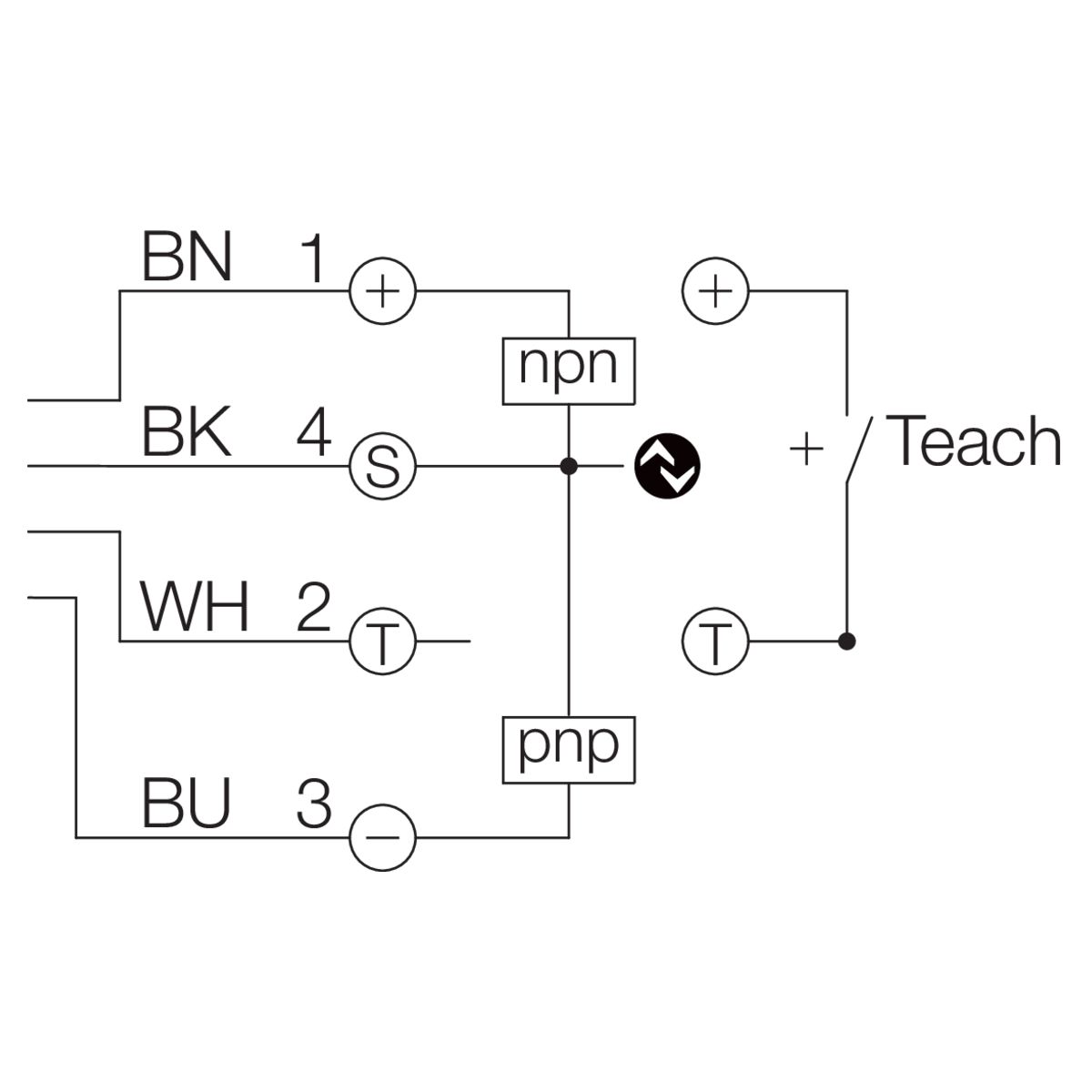

| Connection | Connector, M8, 4-pin |
