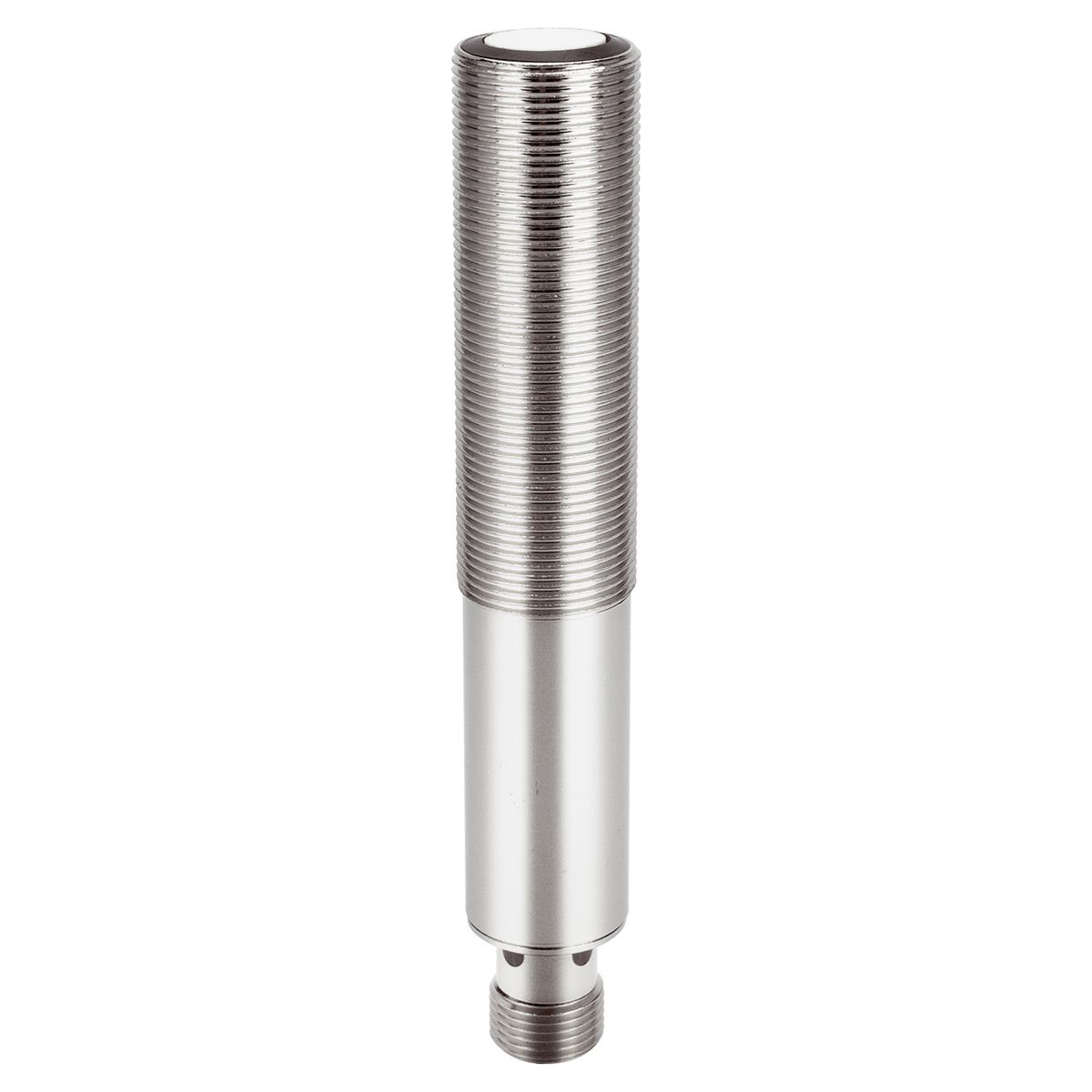

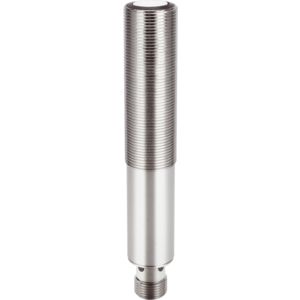

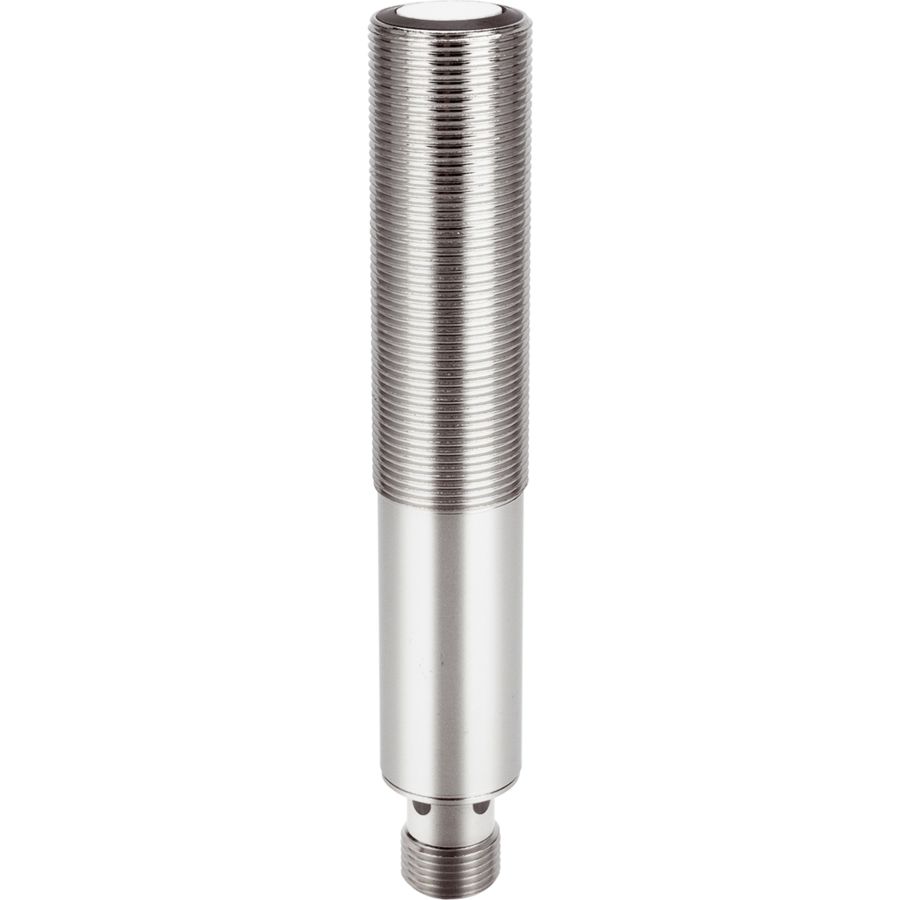

Ultrasonic Sensor - UST 18 M 1500 IU-B4
Part Number: UST 18 M 1500 IU-B4
Article Number: 209506
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Ultrasonic sensor, Ultrasonic barrier |
|---|---|
| Service voltage | 11 … 30 V DC |
| Analog output voltage | 0 … 10 V (teachable) |
| Analog output current | 4 … 20 mA (teachable) |
| Housing material | Brass (nickel-plated) |
| Ambient temperature during operation | 0 … +60 °C |
| Protection type | IP 67 |

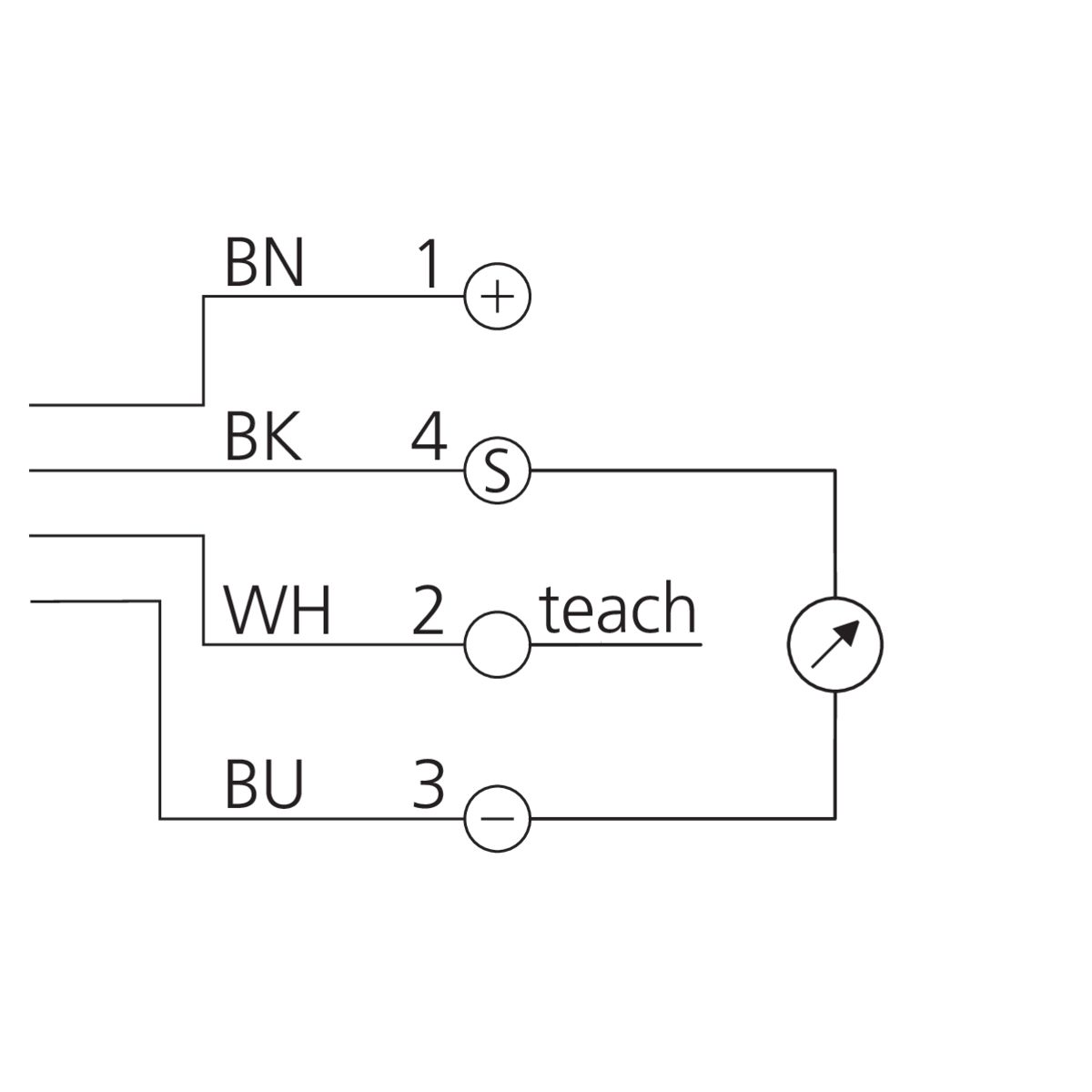

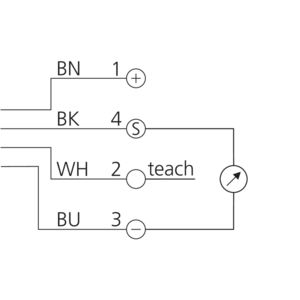

| Connection | Connector, M12, 4-pin |
